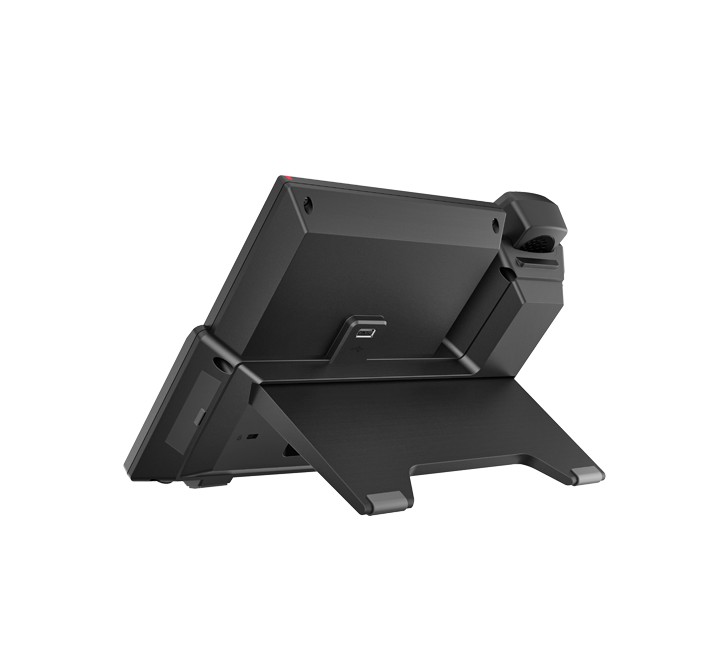

Fanvil X7A Android Touch Screen IP Phone

Fanvil
Availability:

Available on backorder
Add to wishlist
Compare

Model No: X7A

  • 20 SIP lines, hotspot
  • Support an external Fanvil USB camera (optional).
  • 112 one-touch DSS keys on 7” capacity color touch screen
  • HD audio with Harman speaker
  • Built-in Bluetooth 4.2 and 2.4G/5G Wi-Fi
  • Support video codec H.264 and 3-way video conference.
  • Dual Gigabit ports, integrated PoE
  • Stand with 2 adjustable angles of 40 and 50 degrees
  • Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch,
    Elastix, Avaya etc.

*Reference to the country telecommunication regulations this product is subject to TRCSL approvals. Product is not available for online purchase. If you are authorized to purchase this product, please submit your company details and obtain a quote or contact our sales team.

Compare
Add to quote

Fanvil X7A Android Touch Screen IP Phone

As a high-end enterprise IP phone with Android 9.0 OS, Fanvil X7A provides a more intelligent and smoother touch operation experience for the users. 112 DSS keys on the 7-inch color touch screen, built-in WiFi, built-in Bluetooth make daily communication smarter and simpler. Matching an optional USB camera Fanvil CM60, Fanvil X7A can deliver a superb audio and video for the group conference.

Optimized Android 9.0 Operation System

Android 9.0 OS in Fanvil X7A supports a greater compatibility and more powerful functions.
-Movable icons on interface provide the direct access to frequently-used functions.
-Intelligent touch full keypad with interesting Emoji.

HD Video Call with Fanvil CM60 USB Camera

Matching an optional Fanvil CM60 camera, Fanvil X7A supports the 3-way video conference with HD full-screen image even in
a dark environment. Featuring a clip and USB cord, Fanvil CM60 can be installed flexibly on phone, PC or desk.

112 DSS Keys on a 7″ Color Touch Screen

Without any expansion module, Fanvil X7A possesses 112 programmable DSS keys which can be configured as speed dial, call forwarding, BLF, group broadcasting function.

HD Audio with Harman Speaker

Featured with Harman Speaker, Wideband Codec G.722 and Audio Codec Opus, Fanvil X7A keeps bringing the most premium sound for the users.

Greater Collaboration with Built-in WiFi and Bluetooth

-No more messy cables on table with built-in WiFi
-Enable multi-tasking with Bluetooth headset

Fanvil X7A Android Touch Screen IP Phone

  • Android 9.0 OS
  • 20 SIP lines
  • 7-inch color touch screen with 112 one-touch DSS keys
  • External Fanvil USB camera (optional)
  • 720P HD video call, video codec H.264
  • HD audio with Harman speaker, Wideband codec G.722 and audio codec Opus
  • Built-in 2.4G/5G WiFi & Bluetooth
  • Support EHS headset
  • Support SIP hotspot
  • Local phonebook up to 2000 entries
  • Support both PoE and external power supply
SKU: X7A Categories: , , , , , ,
Generic
  • 20 SIP Lines
  • HD Voice
  • Support receiving video call
  • PoE Enabled
  • 7-inch (1024×600) color touch screen
  • Handset / Hands-free / Headset mode
  • Intelligent DSS Keys (Virtual buttons)
  • Optional External Power Supply
Phone Features
  • Local Phonebook (2000 entries)
  • Remote Phonebook (XML/LDAP, 2000 entries)
  • Intelligent Search for Contacts and Call Log
  • Call logs (In/out/missed, 1000 entries)
  • Black/White List Call Filter
  • Screen saver
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronization
  • Built-in Bluetooth 4.2: Support Bluetooth headset/ Bluetooth of Mobile Device
  • Built-in Wi-Fi
    • 2.4GHz, 802.11 b/g/n
    • 5GHz, 802.11 a/n/ac
  • Support Recording
  • Action URL / Active URI
  • UaCSTA
  • Audio/Video Recording
  • SIP Hotspot
  • Group Broadcasting
  • Action Plan
  • Group listening
Call Features
  • Call out / Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forwarding (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Call Parking/Pick-up (Depending on server)
  • Redial
  • Do-Not-Disturb
  • Auto-Answering
  • Voice Message (On server)
  • 5-way Audio Conference
  • Hot Line
  • Hot desking
  • BLF
Video
  • Video decoding: H.264
  • Video call resolution: CIF/VGA/4CIF/720P/1080P
  • Image format: JPEG/PNG/BMP
  • Video format: MP4
  • Bandwidth selection: 64kbps~4Mbps
  • Frame rate selection: 5~30fps
  • Video from remote site can be displayed in full screen
  • 3-way Video Call with External Camera Fanvil CM60
  • Optional Fanvil CM60 USB Camera
    • 2 Mega Pixel
    • Plug and Play
    • Flexible Placement and Angle
  • Adjustment
  • Video Preview
Audio
  • HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
  • HAC handset
  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband Codec: G.711a/u, G.729AB, iLBC
  • Wideband Codec: G.722, Opus
  • Full-duplex Acoustic Echo Canceller (AEC)
  • Noise Reduction (NR)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
    DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
Networking
  • Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
  • IP Mode:IPv4
  • IP Configuration: Static / DHCP
  • Network Access Control: 802.1x
  • VPN: OpenVPN (Requires third-party app support)
  • VLAN
  • LLDP
  • CDP
  • QoS
Protocols
  • SIP2.0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • CDP
  • LLDP
  • PPPoE
  • 802.1x
  • OpenVPN (Requires third-party app support)
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069
Deployment & Management
  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
  • Web Management Portal
  • Supports the third party communication APP
  • Supports Web, Telnet
  • Supports encrypted configuration files download with AES
  • Supports Web upgrade
  • Supports factory reset data
Physical Specifications
  • Color: Black
  • LCD x1:7 inch (1024×600) color touch screen
  • Keypad: 26 keys, including
    • 5 Function keys (Hold, MWI, Mute, Headset, Redial)
    • 4 Navigation keys
    • 1 OK key
    • 1 Return key
    • 12 Standard Phone Digits keys
    • 2 Volume Control keys, Up/Down
    • 1 Hands-free key
  • HD Handset (RJ9) x1
  • Standard RJ9 Handset Wire x1
  • 1.5M CAT5 Ethernet Cable x1
  • Back Rack x1
  • RJ9 Port x2: Handset x1, Headset x1
  • RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
  • USB2.0 Port x1: Standard A, Connect with Flash Driver
  • Safety keyhole x1
  • Power: 5V/2A or PoE
  • Power Consumption (PoE): 1.596~11.86W
  • Power Consumption (Adapter): 0.907~9.38W
  • Working Temperature: 0~45℃
  • Working Humidity: 10~95%
  • Installation: Desktop Stand
  • Device Dimensions
    • Desktop Stand (Angles 1): 268x185x189mm
    • Desktop Stand (Angles 2): 268x201x168mm
  • Gift Box Dimensions: 304x297x66mm
  • Outer CTN Dimensions: 616x358x329mm (10 PCS)
