Yealink EXP50 – A High-performance Color-screen Expansion Module

Availability:

Available on backorder


Model No: EXP50

Color-Screen Expansion Modules for T5 Series
• 4.3″ 272 x 480-Pixel Color Screen
• 20 Physical Keys Each with a Dual-Color LED
• 40 Additional Keys Through Page Switch with 3-Page View
• Maximum Support up to Three Expansion Modules
• Color Icons for Rich Visual Wxperience
• Supports up to 3 Modules Daisy-Chain
• Stand with 2 Adjustable Angles
• USB Port (2.0 Compliant)
• Suitable for Yealink Applies to Yealink T5 Series
(SIP-T58V/SIP-T58A/SIP-T56A/SIP-T54S/SIP-T52S)
• AC 100~240V Input and DC 5V/2A Output
• 1-Year Hardware Warranty

Compare

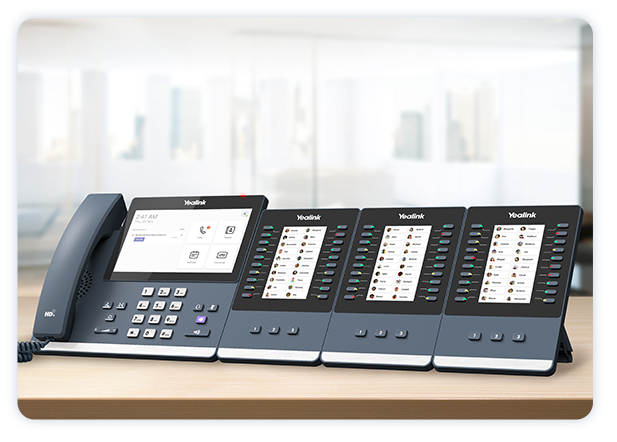

Dedicated module for adding efficiency and productivity With a 4.3-inch color screen, 20 programmable physical keys and 3 page keys, Yealink EXP50 expansion module bringsa fresh visual presence, intuitice user interface, and easy-to-use operating experience.Each phone can support up to 3 EXP50s, adding 180 additional programmable keys with presence LED for multiple features,and making the EXP50 an ideal solution for receptionists, administrative assistants or employees of contact centerto monitor contacts and manage a large volume of calls with ease.





Plug-and-play, customise your voice communication experience

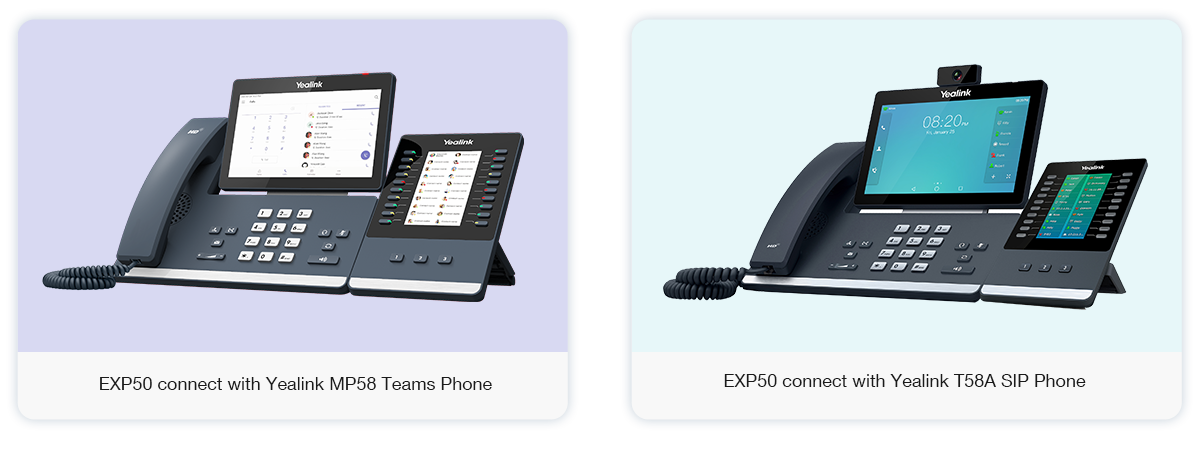

By connecting the EXP50 to a compatible Yealink Teams phone, the module support showing up to 20 contacts on each page for speed dialing or call transfer, while the status of the contacts are synchronized and presented with the color of the presence LED.
When connected to Yealink T5 series SIP phone, the provided multifunctional line keys can be set as BLF, speed dial, call forward, transfer, call park, call pickup, etc.

EXP50 Expansion Module | Features at a Glance



• 4.3″ color display with backlight
• 20 physical keys with dual-color LED indicator
• 3 control keys with illuminated LED for fast page switch
• Supports up to 3 modules daisy-chain
• Stand with 2 adjustable angles
• USB port (2.0 compliant) for data in and out

Display

• 4.3” 272×480-pixel color display with backlight

• 16 bit depth color

• Three page views are possible

• Different color icons for each function shown on the LCD

Features Keys and Indicator

• 20 physical keys each with a presence LED

• 40 additional keys through page switch

• 3 independent control keys with illuminated LED are used for fast switching pag















































































Features

• Seamless lock and unlock with phone • Stand with 2 adjustable angles

• For support of two or three Expansion Modules, an external Yealink power adapter (5V/2A) is required.

• Up to three EXP50 can be attached on T56A/ T58A/VP59/MP56/MP58/MP58-WH Teams phones

• USB port (2.0 compliant) for data in and out

• Max power consumption (PSU): 1.5W • Dimension (W*D*H*T): 196.5mm*124.0mm*137.5mm*42.6mm • Applies to Yealink T56A/T58A/VP59/MP56/MP58/ MP58-WH Teams phones

• Operating temperature: -10~50°C (+14~122°F)

• Operating humidity: 10~95%















































































Package Features

• Package content: – Yealink EXP50 Color-screen Expansion Module – Stand – Connecting Sheet – USB Cable – Screwdriver – Screws – Quick Start Guide

• Qty/CTN: 10 PCS

• N.W/CTN: 6.0 kg

• G.W/CTN: 6.598 kg

• Giftbox size: 212mm*148mm*90mm

• Carton Meas: 480mm*310mm*228mm
