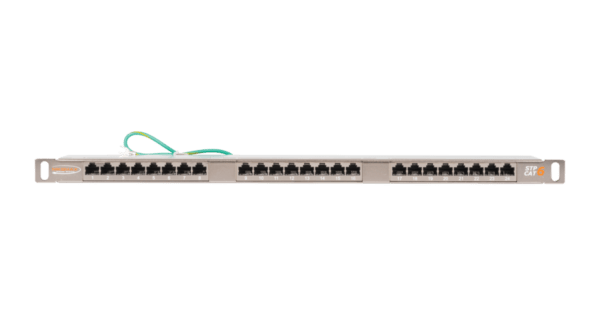

NMC-RP24SE2-HU-MT – STP Patch Panel 24 Ports, Cat.6, 110/KRONE Type, 0.5U – SLIM Type

Availability:

Available on backorder


Model No: NMC-RP24SE2-HU-MT

  • Packing Option – 1 in Сardboard Box
  • Contacts with Gold (50 micro-inches) over nickel (100 micro-inches)
  • Color scheme of wiring according to two standards: T568 A and B
  • Fully shielded version, nickel-plated housing
  • All ports are numbered, additional areas available for marking
  • Built-in cable organizer
  • Grounding wire for grounding to the common rail of the cabinet
  • Universal IDC contacts for 110 / Krone type

Standard Warranty (Non-Certified) – 5 Years

System Warranty (Certified) – 25 Years

Compare
Shielded Patch Panels are designed for connecting different SCS subsystems and network equipment to each other with patch cords. NIKOMAX NMC-RP24SE2-HU-MT (Cat.6) and NMC-RP24SD2-HU-MT (CAT5), high-density panels are made of steel, fully shielded housings and designed for installation in 19’’ cabinets and racks. These panels contain 24 port RJ45 / 8P8C at a height of only 0.5 U. This solution is ideal to provide a high port density need (e.g., data centers) or to extend the network in the limited space of the cabinet. Universal IDC contacts for 110 / KRONE type knives are located on the rear side of panels . The panels offer two wiring standards: T568 A and B. Shielded cable are grounded in pairs on the screw terminals. The cassette provided the 9th ground to IDC-contact – specifically for the drain wire of the cable which both sides of the PCB have a common ground bus. For better shielding against electromagnetic interference and improve communication with unpainted rails cabinet, steel body panels are galvanized with nickel. A built-in organizer for secure fastening of cables.

Key features

Contacts with 50 micro-inches gold plating: not less than 750 connecting cycles. The design of the tracks minimizes crosstalk in the connector (for Cat.6 and 6A) The spring-loaded clips on the sides of the socket ensure reliable contact with the patch cord shielding

Universal IDC contacts for 110 / Krone (it is recommended to use 110 type knives) To improve the convenience of terminating, the contact blades are provided with slits that firmly hold the wires in the wiring process

Common ground bus and screw terminals for best electrical connection to the panel housing

9th IDC contact specially for grounding drain cable conductor

Weight 1.37 kg
Dimensions 49 × 11 × 5 cm
Category

6

Bandwidth, MHz

250

Diameter of conductors, AWG

~24-22 AWG (0.50-0.65 mm)

Connection style

Fully shielded

Compliance

Exceeds the requirements of the standards: ISO / IEC 11801, EN 50173 and ANSI / TIA -568-C.2

Supported applications

10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, 10G-BASE-T (For Cat. 6),
ATM-25, ATM-51, ATM-155, 100VG-AnyLan, TR-4, TR-16 Active, TR-16 Passive

Temperature ranges

Storage -40 to +70 ° C. Installation 0 to +50 ° C. Operating -10 to +60 ° C

Individual packing

Cardboard box

Warranty

5 years – extended; 25 years – as part of the NIKOMAX SCS certified

Number of ports

24

Height, U

0.5 (22.25 mm)

Connector type

RJ45/8P8C

Connector material in connector

Phosphor bronze

Contact coating material

Gold (50 micro-inches) over nickel (100 micro-inches)

Number of cable connections

Not less than 750

Type of IDC contacts (seal)

110/KRONE

Layout diagram

T568A/B

IDC Contact material

Phosphor bronze

IDC coating material

Tin (100 micro-inches)

Plastic material

High-strength, non-flammable, corresponds to UL94V-0

Marking

All ports are numbered, there are additional marking areas

Installation

19″ Cabinet or rack

Depth in rack, mm

100

Material of the supporting structure

Galvanized steel: body – 1.5mm; cover – 1 mm.

Color

Metallic (nickel)

Insulation resistance

Not less than 500 M ohms (at constant voltage of 100 V)

Maximum load-bearing capacity

Up to 1000 V, 60 Hz for 1 minute

Contact resistance, μΩ

Not more than 20

IDC Contact resistance, μΩ

Not more than 2.5
