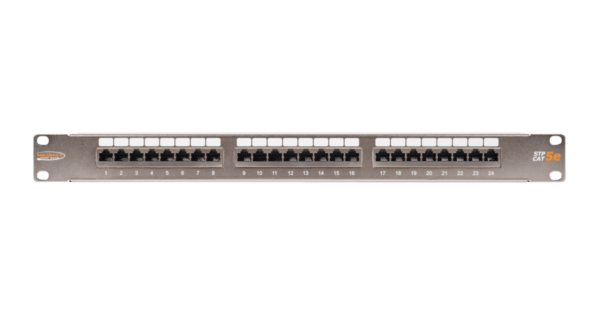

NMC-RP24SD2-1U-MT – Shielded patch panel, 24 ports, 19 “, 1U, Category 5e

Availability:

Available on backorder
Add to wishlist
Compare

Model No: NMC-RP24SD2-1U-MT

  • Packing Option – 1 in Сardboard Box
  • Contacts with 50 micro-inches gold plating: not less than 750 connecting cycles
  • Color scheme of wiring according to two standards: T568 A and B
  • Fully shielded version, nickel-plated housing
  • All ports are numbered, additional areas available for marking
  • Built-in cable organizer
  • Grounding wire for grounding to the common rail of the cabinet
  • Universal IDC contacts for 110 / Krone type

Standard Warranty (Non-Certified) – 5 Years

System Warranty (Certified) – 25 Years

Compare
Add to quote

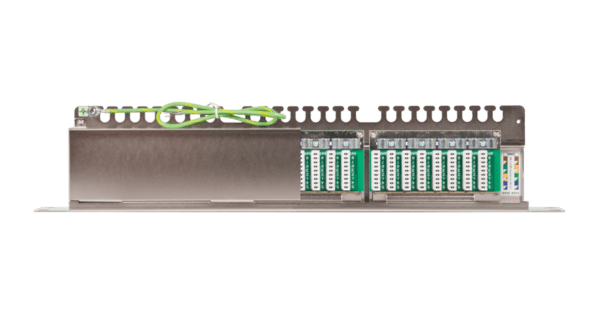

Shielded Patch Panels are designed for connecting different SCS subsystems and network equipment to each other with patch cords. NIKOMAX NMC-RP24SA2-1U-MT (Cat. 6A), NMC-RP24SE2-1U-MT (Cat.6) and NMC-RP24SD2-1U-MT (CAT5) patch panels are made in stainless steel, fully shielded enclosures. They are designed for installation in 19 ‘‘ cabinets and racks. The panels have a standard height of 1U and can accommodate 24 port RJ45 / 8P8C. Universal IDC contacts for 110 / KRONE type knives are located on the rear side of panels . There are two wiring standards: T568 A and B. Shielded cable are grounded in pairs on the screw terminals. The cassette provided the 9th ground to IDC-contact – speci cally for the drain wire of the cable which both sides of the PCB have a common ground bus. For better shielding against electromagnetic interference and improve communication with unpainted rails cabinet, steel body panels are galvanized with nickel. A built-in organizer for secure fastening of cables.
SKU: NMC-RP24SD2-1U-MT Categories: , , , ,
Category

5e
Bandwidth, MHz

100
Diameter of conductors, AWG

~24-22 AWG (0.50-0.65 mm)
Connection style

Fully shielded
Compliance

Exceeds the requirements of the standards: ISO / IEC 11801, EN 50173 and ANSI / TIA -568-C.2
Supported applications

10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, 10G-BASE-T (For Cat. 6),
ATM-25, ATM-51, ATM-155, 100VG-AnyLan, TR-4, TR-16 Active, TR-16 Passive
Temperature ranges

Storage -40 to +70 ° C. Installation 0 to +50 ° C. Operating -10 to +60 ° C
Individual packing

Cardboard box
Warranty

5 years – extended; 25 years – as part of the NIKOMAX SCS certified
Number of ports

24
Height, U

1
Connector type

RJ45/8P8C
Connector material in connector

Phosphor bronze
Contact coating material

Gold (50 micro-inches) over nickel (100 micro-inches)
Number of cable connections

Not less than 750
Type of IDC contacts (seal)

110/KRONE
Layout diagram

T568A/B
IDC Contact material

Phosphor bronze
IDC coating material

Tin (100 micro-inches)
Plastic material

High-strength, non- fammable, meets UL94V-0
Marking

All ports are numbered, there are additional labeling area
Installation

19″ Cabinet or rack
Depth in rack, mm

100
Material of the supporting structure

Galvanized steel: body – 1.5mm; cover – 1 mm.
Color

Metallic (Nickel)
Insulation resistance

Not less than 500 M ohms (at constant voltage of 100 V)
Maximum load-bearing capacity

Up to 1000 V, 60 Hz for 1 minute
Contact resistance, μΩ

Not more than 20
IDC Contact resistance, μΩ

Not more than 2.5
