DINSTAR DP85 Dual‐button SIP Video Intercom

Planet
Availability:

Available on backorder


Model No – DP85

  • HD Voice
  • 1080p HD camera
  • Door Access: DTMF tones, IC/ID card
  • Dual SIP line, Dual SIP servers
  • Resolution:  up to 1280 x 720
  • Viewing Angle: 80°(H), 60°(V)

*Reference to the country telecommunication regulations this product is subject to TRCSL approvals. Product is not available for online purchase. If you are authorized to purchase this product, please submit your company details and obtain a quote or contact our sales team.

  Product Availability : On Order Basis, 4-8 Weeks

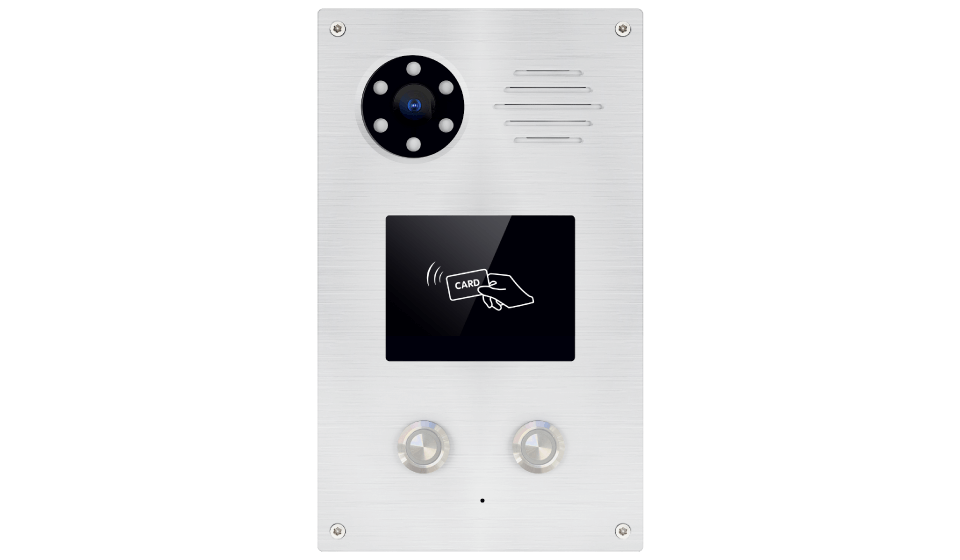

DINSTAR  DP85 is a Dual‐button SIP Video Intercom with the integrated HD camera, RF card reader and advanced audio system. It supports H.264 video compression format and delivers excellent video quality in 720p video resolutions. with the touch screen control pad, you can speak to visitors and view video from camera at any time.

The DP85 offers keyless control and convenience for the users which supports many ways of opening the door without a key. The door can be open remotely but also local IC/ID card if there is an electronic door lock. It’s ideal for control communication and security over internet such as  business, institutional and residential applications.

SKU: SKG-300-1-1-1-2-1-1-1-1-1-1-1-1-1 Categories: ,
Hardware
Call Button 2 (Aluminum surface, Metal bottom shell)
Dimensions (W x D x H) 200 x 120 x 38 mm
Power Supply DC 12V 1A
Power Requirements 802.3af PoE class 3
Interface
Physical Interface 1 port 100M/10M RJ45 Ethernet, POE
1 port Ethernet camera interface, support H264/H265
2 ports delay output
2 ports sensor short circuit input
2 ports exit button
1 port recording output
1 port 8Ω speaker
1 port analog audio output
1 port external audio input
1 port MIC
1 port tamper proof detection
1 port Wiegand card reader
1 port RS232
2 ports DSS key
Protocols and Standard
Access Control Dual SIP line, Dual SIP servers
Door Access: DTMF tones, RFID card
Door Phone features:
Full-duplex
Default auto answer
Action URL/Active URI remote control
Speed Dial
Audio Features HD voice
Two-way audio stream
Wideband codec: G.722
Narrowband codec: PCMA, PCMU, G.729,
G723_53, G723_63, G726_32
Echo cancellation with G.168
Voice activity detection (VAD)
Comfort noise generator(CNG)
Built-in Micro and speaker
Acoustic echo cancellation audio output
Video Features 3M Pixels color CMOS camera
Maximum image transfer rate: 1080p -25fps
Video Codec: H.264
Resolution: up to 1920 x 1080
Viewing Angle: 80°(H), 60°(V)
Minimum Illumination: 0.1lux
Protocols & Network SIP v1 (RFC2543), v2 (RFC3261)
SIP over TLS, SRTP
Onvif
TCP/IPv4/UDP
RTP/RTCP, RFC2198, 1889
HTTP/HTTPS/FTP/TFTP
ARP/RARP/ICMP/NTP
DNS SRV/ A Query/NATPR Query
Primary /Secondary DNS
STUN, Session timer
802.1p/q, DSCP,802.1x
DHCP/Static/PPPoE
DTMF Mode:
In-Band, RFC2833 and SIP INFO
Management Auto provisioning:
FTP/TFTP/HTTP/HTTPS/PnP
HTTP/HTTPS Web Management
Configuration keypad-based management
SNMP/TR069
NTP/Daylight Saving Time
Firmware Upgrade via Web
Syslog
Configuration backup/restore
