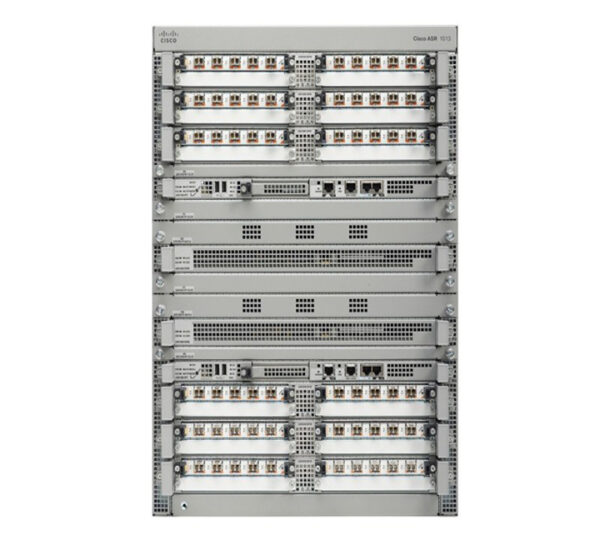

CISCO ASR1013

Cisco

  • Model-Cisco ASR1013
  • Scalability-40 to 200 Gbps
  • Targeted for-Large enterprise Internet edge, service provider
  • Rack Height-13U
  • Shared port adapters-24
  • Ethernet port adapters-12
  • Embedded services processor slots-2
  • Route processor slots-2
  • Number of SPA interface processors (SIPs) supported-6
  • Redundancy-Yes: Hardware
  • Dimension (H x W x D)-579.1 x 437.4 x 461.0 mm

රු1,890,045.00

Features and benefits

When it comes to connecting enterprise networks to cloud infrastructure, Cisco ASR 1000s are more than mere edge routers.

Application-centric SD-WAN

Security and integrity

Leading encryption performance, layered security services, and a tamper-resistant design help the Cisco ASR 1000 reduce your attack surface and secure edge traffic.

High performance and scale

Always-on architecture

A unique chipset architecture splits control and data-plane operations for improved performance, no matter how complex or crowded your edge. The Cisco ASR 1000 is built to scale.

Unified communications

Advanced silicon

Our latest ASIC technology in the Cisco ASR 1000 Series provides unparalleled edge performance, even when connectivity comes in large bursts.



SKU: CISCO ASR1013 Category:
brands

Cisco

Sub Brands



General

Physical specifications

Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets.

Refer to the applicable hardware installation guide for additional details.

Height: 22.8 in. (579.1 mm)

Width: 17.2 in. (437.4 mm)

Depth: 18.15 in. (461.0 mm)

Weight:

●  184.0 lb (83.46 kg) (with redundant AC power supply, SPA, route processor, SIP blank covers, two Cisco ASR 1000 Series 40-Gbps ESPs [ASR1000-ESP40] or ASR1000 Series 100-Gbps ESPs [ASR1000-ESP100] or ASR1000 Series 200-Gbps ESPs [ASR1000-ESP200], two Cisco ASR 1000 Series RP2s [ASR1000-RP2], six Cisco ASR 1000 Series 40-Gbps SIPs [ASR1000-SIP40], and no SPAs)

Default memory 8-GB DRAM RP2

8-GB DRAM RP3

Number of SIPs or Ethernet line cards supported 6
Shared port adapters 24 SPA slots
Ethernet port adapters 12 EPA slots
Cisco ASR 1000 Series ESP 2 ESP slots
Route processor 2 route-processor slots
Redundancy Hardware: Yes
Built-in Gigabit Ethernet ports 0
Built-in 10 Gigabit Ethernet port No
Network interface module No
Cisco ASR 1000 Series Cisco ASR 1013
ESP support Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40),
Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100), and Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200)
ESP bandwidth 40 to 200 Gbps
ESP memory Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40):
8-GB DRAM

Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100): 16-GB DRAM

Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200): 32-GB DRAM

SIPs and Ethernet line cards Supports Cisco ASR 1000 Series 40-Gbps SIP Carrier Card (ASR1000-SIP40), Cisco ASR1000 Series MIP 100-Gbps Carrier Card (ASR1000-MIP100), and ASR 1000 Fixed Ethernet Line Card; two 10 GE + twenty 1 GE (ASR1000-2T+20X1GE) line cards; and six 10 GE line cards (ASR1000-6TGE)
Embedded hardware-based encryption Yes: On Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) with up to 11-Gbps crypto support throughput, Cisco ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) with up to 29-Gbps crypto support throughput, and Cisco ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200) with up to 78-Gbps crypto support throughput
Minimum Cisco IOS XE Software release Cisco ASR 1000 Series 40-Gbps ESP (ASR1000-ESP40) requires Cisco IOS XE Software Release 3.1.0S, ASR 1000 Series 100-Gbps ESP (ASR1000-ESP100) requires Cisco IOS XE Software Release 3.7.0S, and ASR 1000 Series 200-Gbps ESP (ASR1000-ESP200) requires Cisco IOS XE Software Release 3.10.0S
Rack-mounting Yes: 19-inch
Wall-mounting No
External USB flash memory 1-GB USB flash-memory support
Redundant power supply Yes: Quad power supplies (redundant pairs) by default; option of either AC or DC power supplies

Note: A mix of AC and DC power supplies is not supported.

Power input Worldwide ranging AC (180 to 264V; 240V; 60 or 50 Hz nominal)

Worldwide ranging DC

(-40.5 to
-72; -48V nominal)

Power consumption ●  Maximum (DC): 4200W

●  Maximum (AC-high line): 4000W

●  Maximum (out): 3390W

Airflow Front-to-back
Operating temperature (nominal) Same as for Cisco ASR 1001-X
Operating temperature (short-term) Same as for Cisco ASR 1001-X
Operating humidity (nominal) (relative humidity) Same as for Cisco ASR 1001-X
Operating humidity (short-term) Same as for Cisco ASR 1002
Storage temperature Same as for Cisco ASR 1001-X
Storage humidity (relative humidity) Same as for Cisco ASR 1001-X
Operating altitude Same as for Cisco ASR 1001-X
Network Equipment Building Standards (NEBS) GR-1089 and GR-63
EMC standards Same as for Cisco ASR 1001-X
Safety Standard
