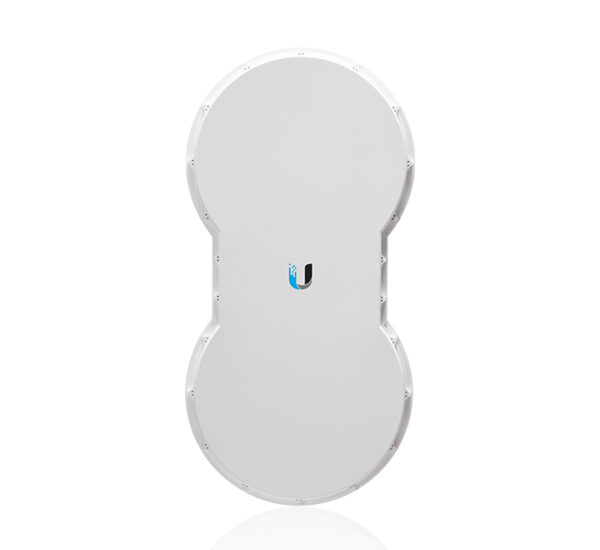

airFiber®5Ghz Mid-Band Bridge

Ubiquiti
Availability:

Available on backorder


Model: AF-5

  • Full-Duplex, Point-to-Point Gigabit Radio
  • High Performance Wireless Backhaul
  • Extreme, Long-Range Links
  • Worldwide License-Free Operation

*Reference to the country telecommunication regulations this product is subject to TRCSL approvals. Product is not available for online purchase. If you are authorized to purchase this product, please submit your company details and obtain a quote or contact our sales team.

Innovative Antenna Design

The high-isolation, dual-antenna design is ideal for robust performance in the harshest RF noise environments.

Revolutionary Performance

Surpassing conventional wired backhauls, the airFiber®5 delivers real throughput of up to 1.2+ Gbps.

Long-Range Links: 100+ km

Designed to be a high-performance backhaul, the airFiber®5 performs at a range of up to 100+ km.

Low-Latency Carrier Backhaul

The airFiber®5 supports FDD (Frequency Division Duplexing) in full-duplex mode for < 1 ms latency, resulting in increased efficiency for carrier-class network backhauls.

5 GHz Unlicensed Band

The airFiber®5 operates in worldwide, license-free, 5 GHz frequencies. Users can deploy airFiber5 almost anywhere they choose (subject to local country regulations).

Operating Frequency 5470 – 5600 MHz, 5650 – 5850 MHz (FCC 15.247, 15.407, IC RSS 210)
5470 – 5875 MHz (ETSI EN 301 893, EN 302 502)
5470 – 5950 MHz (Other Regions)
Dimensions 938.4 x 468.4 x 281.4 mm
Weight 16 kg (Mount included)
Maximum Power Consumption 40 W
Power Supply 50V, 1.2A PoE GigE Adapter (Included)
Power Method Passive Power over Ethernet (42-58VDC)
Certifications CE, FCC, IC
Mounting Pole Mount Kit (Included)
Wind Loading 194 lbf @ 125 mph
Wind Survivability 125 mph
Operating Temperature -40 to 55°C (-40 to 131° F)
LEDs (12) Status LEDs:
Data Port Link/Activity
Data Port Speed
Management Port Link/Activity
Management Port Speed
GPS Synchronization
Master/Slave
Link Status
Modulation Mode 0.25x to 4x, 6x, 8x, Overload
Remote and Local Displays (Calibrated Signal Strength)
INTERFACE
Data Port (1) 10/100/1000 Ethernet Port
Configuration Port (1) 10/100 Ethernet Port
Auxiliary Port (1) RJ-12, Alignment Tone Port
SYSTEM
Maximum Throughput 1.0+ Gbps
Maximum Range 100+ km (Dependent on Regulatory Region)
Packets per Second 1+ Million
Encryption 128-Bit AES
Forward Error Correction 164/205
Cyclic Prefix 1/16 Fixed
Uplink/Downlink Ratio 50% Fixed
Radio Frame Synchronization GPS
Dynamic Frequency Selection CE, FCC/IC
RADIO FREQUENCY
GPS GPS Clock Synchronization
EIRP ~33 dBm (FCC/IC), ~20 dBm (CE)
Frequency Accuracy ±2.5 ppm without GPS Synchronization
±0.2 ppm with GPS Synchronization
Channel Bandwidth 100 MHz
Modulation 64QAM MIMO
16QAM MIMO
QPSK MIMO
QPSK SISO
¼x QPSK SISO
INTEGRATED SPLIT ANTENNA
TX Gain 23 dBi
RX Gain 23 dBi
Beamwidth
Front-to-Back Ratio 70 dB
Polarity Dual-Slant Polarization
Cross-Polarity Isolation > 28 dB
