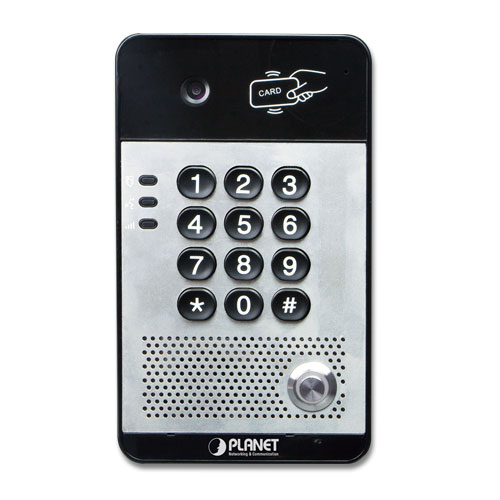

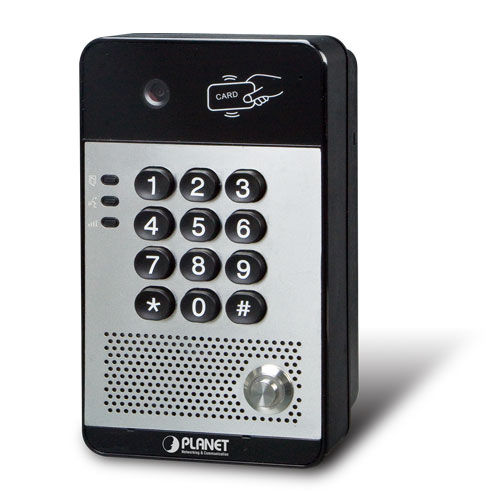

HDP-5240PT – 720p SIP Multi-unit Video Door Phone with RFID and PoE

Availability:

Available on backorder


  Product Availability : On Order Basis, 4-8 Weeks

Video
Image Device 1/4 “color CMOS, Pixels: 1 million
Video Codec H.264
Resolution Main stream: 1280 x 720
Sub-stream: 640 x 360, 352 x 288, 32 x 240
Viewing Angle 110° (H), 95° (V)
Minimum Illumination 1 lux
Audio
Audio Streaming Two-way audio
Narrowband Codec G.711a/u, G.723.1, G.726-32K, G.729AB
Broadband Speech Codec G.722
Microphone Built-in microphone (-38dB) and speaker (4Ω, 3W) input
Audio Output Acoustic echo cancellation
DTMF In-band, out-of-band (RFC2833), SIP info
Access Control Function
Lines Two SIP lines, supporting SIP 2.0 (RFC 3261) and related RFC
Door Access DTMF, password, RFID card, switch
Door Phone Features Full-duplex (handsfree)
Default auto answer
200,000 door open records
1,000 remote access list
Up to 2,000 RFID cards access
Electric lock internal or external power supply options
Supports customized DSS keys
Network Time Synchronization
Action URL/Active URI remote control
Network and Protocols
Network Standard IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
VPN L2TP/openVPN
Protocol Primary and secondary DNS, SNTP client, SRTP, HTTP/HTTPS web pages, MD5 authentication, Web filter, DHCP/static/PPPoE, stun, auto provision, TR069
Physical Specifications

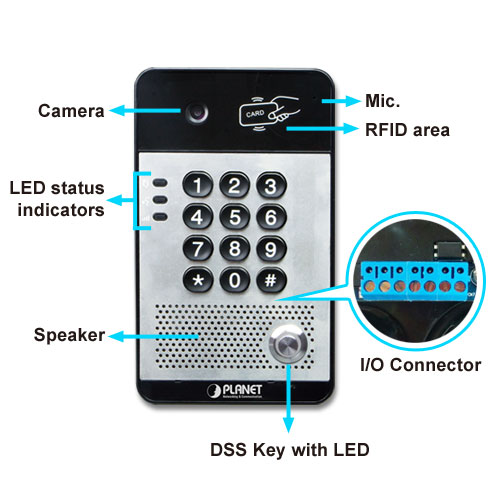

Keypad 1 DSS button (speed dial button)
4 indicator lights (including hot-key backlight)
Numeric keypad
Switch 1 indoor switch
1 relay: MAX DC 30V / 1A, AC 125V / 0.5A
Active switching output: DC 12V / 650mA
RFID Reader ID (EM4100) standard type
Power Supply 12V ± 15%, 1A DC or 802.3at/af PoE
Power Requirements 802.3af PoE, (Class 3 – 6.49 to 12.95W)
Standby Power 2.76W, 12V, 230mA
Shell Material Metal surface, ABS bottom shell
Protection Class IP65
Installation Wall-mounted installation
Net Weight 0.33kg
Dimensions (W x D x H) 160 x 93 x 35 mm
Emission CE, FCC
Environments
Operating Temperature -20~60°C
Storage Temperature -40~70°C
Relative Humidity 10~90%
